AN431AN-ATRG1

IC VREF SHUNT ADJ 0.5% SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: AN431AN-ATRG1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AN431AN-ATRG1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
GB1	AN431AN-ATRG1	DIODES	SOT-23	3	可调式精密并联稳压器

Operating Temperature	-40°C ~ 125°C (TA)
Voltage - Output (Min/Fixed)	2.5V
Mounting Type	Surface Mount
Current - Output	100 mA
Noise - 10Hz to 10kHz	-
Reference Type	Shunt
Noise - 0.1Hz to 10Hz	-
Voltage - Output (Max)	36 V
Voltage - Input	-
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Cathode	1 mA
Tolerance	±0.5%

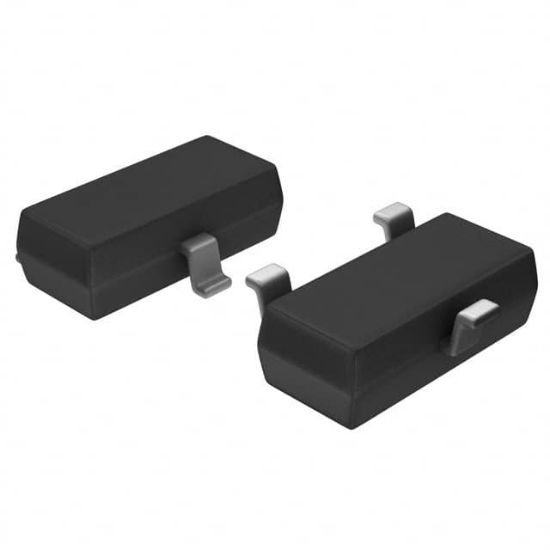

Supplier Device Package	SOT-23-3
Temperature Coefficient	20ppm/°C Typical
RoHS	RoHS
Current - Supply	-
Output Type	Adjustable
