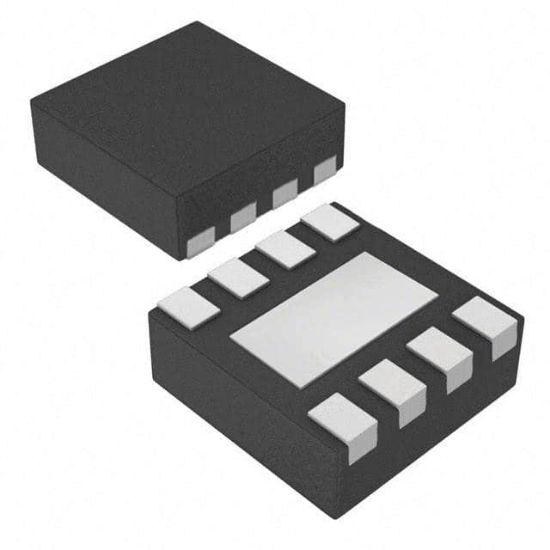

LM5109BSD

IC GATE DRVR HALF-BRIDGE 8WSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LM5109BSD

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LM5109BSD Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
5109BSD	LM5109BSD		SDC08A	8	High Voltage 1A Peak Half Bridge Gate Driver

Voltage - Supply	8V ~ 14V
Rise / Fall Time (Typ)	15ns, 15ns
Logic Voltage - VIL, VIH	0.8V, 2.2V
Mounting Type	Surface Mount
Driven Configuration	Half-Bridge
Current - Peak Output (Source, Sink)	1A, 1A
Operating Temperature	-40°C ~ 125°C (TJ)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Channel Type	Independent
High Side Voltage - Max (Bootstrap)	108 V
Gate Type	N-Channel MOSFET
Input Type	Non-Inverting
Supplier Device Package	8-WSON (4x4)
Number of Drivers	2
RoHS	RoHS
