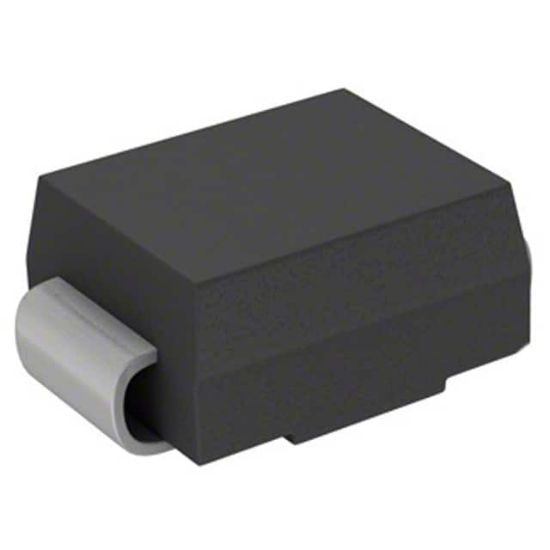

MBR540VSTR-G1

DIODE SCHOTTKY SMD

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: MBR540VSTR-G1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MBR540VSTR-G1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
540VSC	MBR540VSTR-G1	taiwan	SMB/DO-214AC	0

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	SMB
Diode Type	Schottky
Operating Temperature - Junction	-65°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	550 mV @ 5 A
Current - Reverse Leakage @ Vr	100 μA @ 40 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	5A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
