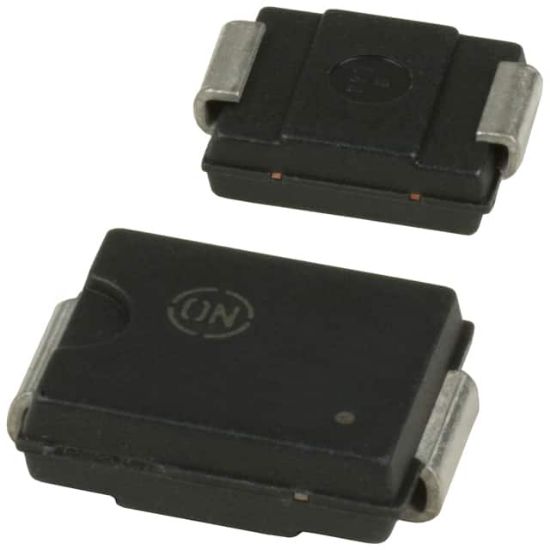

MBRS3201T3

DIODE SCHOTTKY 200V 3A SMC

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MBRS3201T3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MBRS3201T3 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
B321	MBRS3201T3		SMC	0	200 V, 3 A Schottky Fast Soft-Recovery Power Rectifier

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	SMC
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	840 mV @ 3 A
Current - Reverse Leakage @ Vr	1 mA @ 200 V
Reverse Recovery Time (trr)	35 ns
Voltage - DC Reverse (Vr) (Max)	200 V
Current - Average Rectified (Io)	3A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
