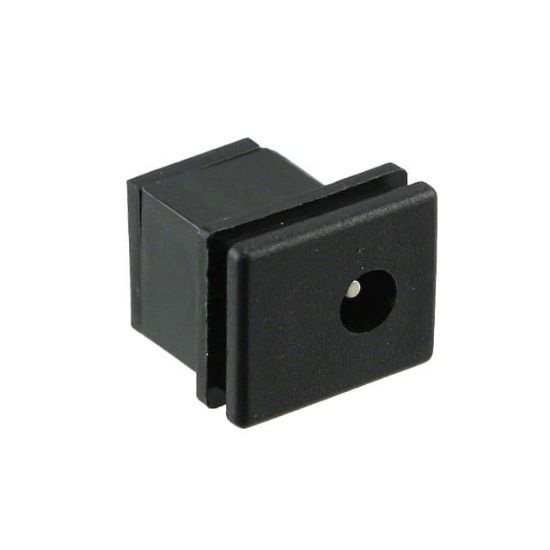

PJ-043H

CONN PWR JACK 1.7X4MM SOLDER

1 review(s) | Add your review

Availability: In stock

Manufacturer: CUI Devices

SKU: PJ-043H

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PJ-043H Description

Industry Recognized Mating Diameter	1.70mm ID (0.067\"), 4.00mm OD (0.157\") EIAJ-2
Ingress Protection	-
Connector Type	Jack
Mounting Type	Panel Mount
Internal Switch(s)	Single Switch, Normally Closed
Gender	Male
Current Rating (Amps)	5 A
Material Flammability Rating	UL94 V-0
Package	Bag
Shielding	Unshielded
Termination	Solder Eyelet(s)
Mating Length/Depth	0.374\" (9.50mm)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Insulation Color	-
Actual Diameter	0.065\" (1.65mm ID), 0.173\" (4.40mm OD)
Features	-
Mounting Feature	-
RoHS	RoHS
Voltage - Rated	24VDC
