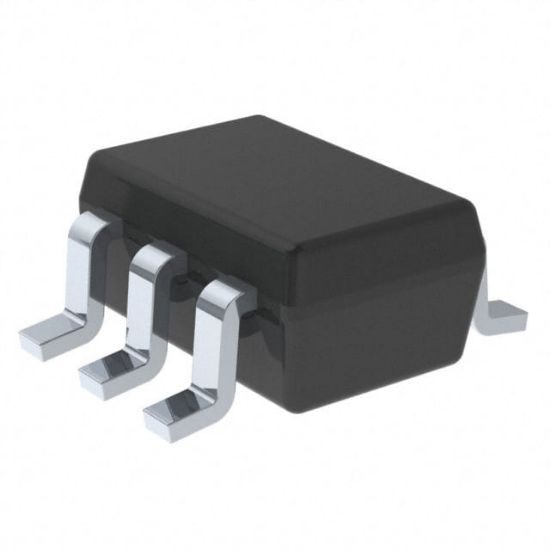

SN74LVC1G3208DCKR

IC SINGLE POS OR-AND 3IN SC70-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74LVC1G3208DCKR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74LVC1G3208DCKR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
DDR	SN74LVC1G3208DCKR		SC-70-6	6	Single 3-Input Positive OR-AND Gate
DD5 DDK DDR	SN74LVC1G3208DCKR	TI	6	0	Single 3-Input Positive OR-AND Gate
DD_	SN74LVC1G3208DCKR		SC-70-6	0	Single 3-Input Positive OR-AND Gate

Output Type	Single-Ended
Operating Temperature	-40°C ~ 125°C
Current - Output High, Low	32mA, 32mA
Number of Circuits	1
RoHS	RoHS
Logic Type	AND/OR Gate
Voltage - Supply	1.65V ~ 5.5V
Supplier Device Package	SC-70-6
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Number of Inputs	3 Input (2, 1)
Schmitt Trigger Input	No
Mounting Type	Surface Mount
