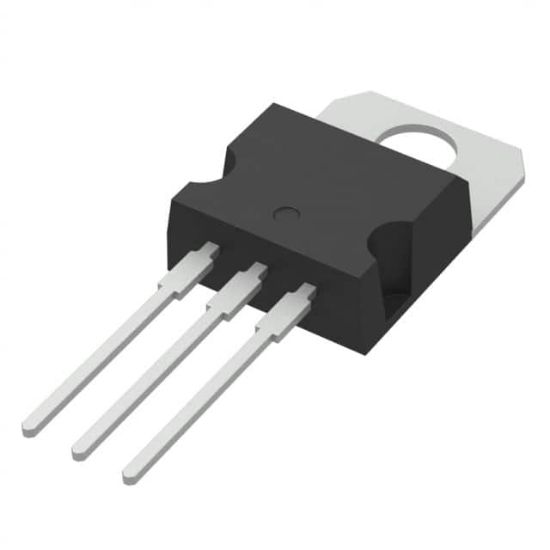

STPS40SM100CT

DIODE ARRAY SCHOTTKY 100V TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: STPS40SM100CT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

STPS40SM100CT Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
PS40SM100CT	STPS40SM100CT		TO-220AB	3	Power Schottky rectifier

Current - Average Rectified (Io) (per Diode)	20A
Mounting Type	Through Hole
Supplier Device Package	TO-220
Diode Type	Schottky
Operating Temperature - Junction	150°C (Max)
Package	Tube
Voltage - Forward (Vf) (Max) @ If	810 mV @ 20 A
Current - Reverse Leakage @ Vr	45 μA @ 100 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	100 V
Diode Configuration	1 Pair Common Cathode
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
