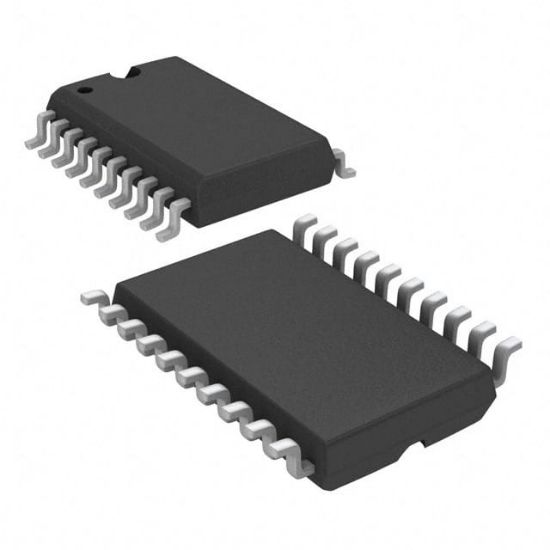

TLC0820AIDWR

IC ADC 8BIT FLASH 20SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TLC0820AIDWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TLC0820AIDWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TLC0820AI	TLC0820AIDWR	TI	20	0	8-Bit, 392 kSPS ADC Parallel Out, Microprocessor Peripheral, On-Chip Track-and-Hold, Single Channels

Operating Temperature	-40°C ~ 85°C
Data Interface	Parallel
Number of A/D Converters	1
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	20-SOIC
Number of Bits	8
Number of Inputs	1
Package	Tape & Reel (TR)
Configuration	S/H-ADC
Architecture	Flash
Input Type	Single Ended
Ratio - S/H:ADC	1:1
Voltage - Supply, Analog	4.5V ~ 8V
Features	-
Sampling Rate (Per Second)	392k
RoHS	RoHS
Voltage - Supply, Digital	4.5V ~ 8V
