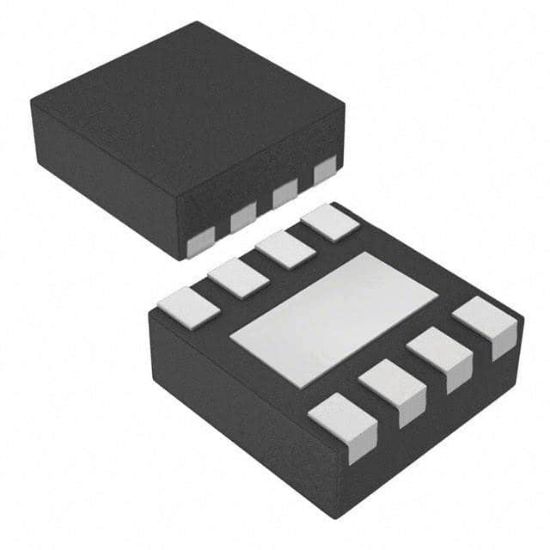

TS12A12511DRJR

IC SWITCH SPDT SGL 8SON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TS12A12511DRJR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TS12A12511DRJR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ZVE	TS12A12511DRJR		WSON4X4-8	8	±6 V/+12 V, 5 Ω, LOW rON SINGLE SPDT ANALOG SWITCH

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	14pF
On-State Resistance (Max)	5Ohm (Typ)
Mounting Type	Surface Mount
Supplier Device Package	8-SON (4x4)
Switch Circuit	SPDT
Voltage - Supply, Dual (V±)	±2.7V ~ 6V
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Charge Injection	26pC
Switch Time (Ton, Toff) (Max)	95ns, 50ns
Voltage - Supply, Single (V+)	2.7V ~ 12V
Crosstalk	-70dB @ 1MHz
Multiplexer/Demultiplexer Circuit	2:1
Channel-to-Channel Matching (ΔRon)	1Ohm
-3db Bandwidth	93MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	1nA
