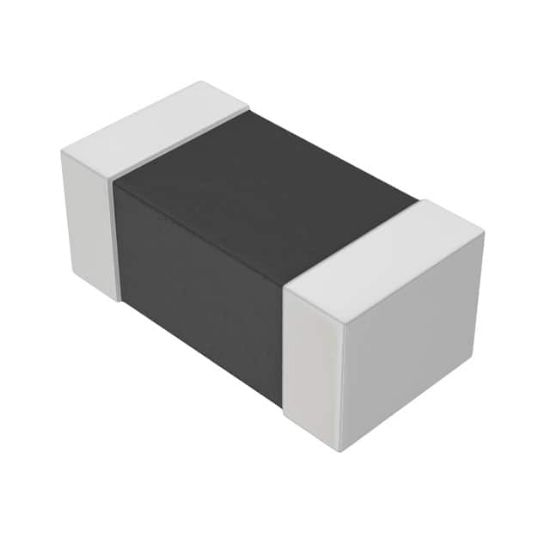

EZA-EG2N50AX

ESD SUPPRESSOR 0402

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: EZA-EG2N50AX

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

EZA-EG2N50AX Description

Panasonic EZAEG ESD Suppressors

Panasonic EZAEG ESD Suppressors provide ESD suppression of high-speed differential data lines. These suppressors offer low capacitance and robust ESD withstanding and suppression characteristics. The devices are RoHS compliant and the EZAEG 3W module is also?AEC-Q200 compliant. Typical applications for Panasonic EZAEG ESD Suppressors include smartphones, RF modules, NFC, GPS, antenna circuits, HDMI, and more. The EZAEG 3W variant is suitable for?automotive (CAN, Ethernet, USB, LVDS) applications, automotive antenna, and amusement equipment.

Operating Temperature	-55°C ~ 125°C
Maximum DC Volts	500 V
Varistor Voltage (Max)	-
Energy	-
Mounting Type	Surface Mount
Capacitance @ Frequency	-
Maximum AC Volts	-
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Surge	-
Features	-
Varistor Voltage (Typ)	30 V
RoHS	RoHS
Varistor Voltage (Min)	-
