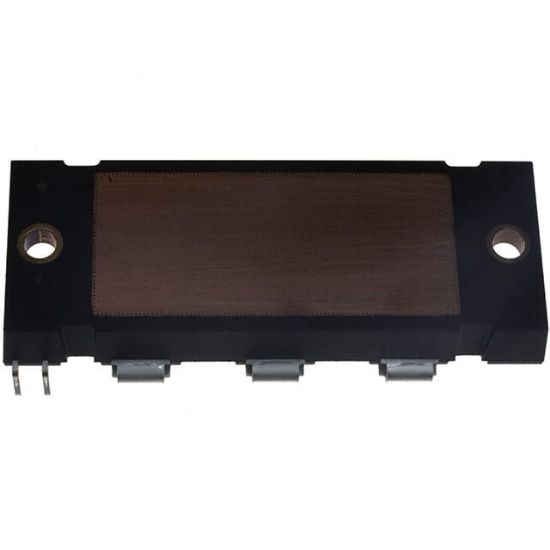

FP7G100US60-6364388

IGBT, 100A, 600V, N-CHANNEL

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: FP7G100US60-6364388

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FP7G100US60-6364388 Description

Operating Temperature	-40°C ~ 125°C (TJ)
Input	Standard
Input Capacitance (Cies) @ Vce	6.085 nF @ 30 V
Mounting Type	Chassis Mount
Current - Collector (Ic) (Max)	100 A
Supplier Device Package	EPM7
NTC Thermistor	No
Voltage - Collector Emitter Breakdown (Max)	600 V
Power - Max	400 W
IGBT Type	-
Package	Tube
Vce(on) (Max) @ Vge, Ic	2.8V @ 15V, 100A
Configuration	Half Bridge
RoHS	RoHS
Current - Collector Cutoff (Max)	250 μA
