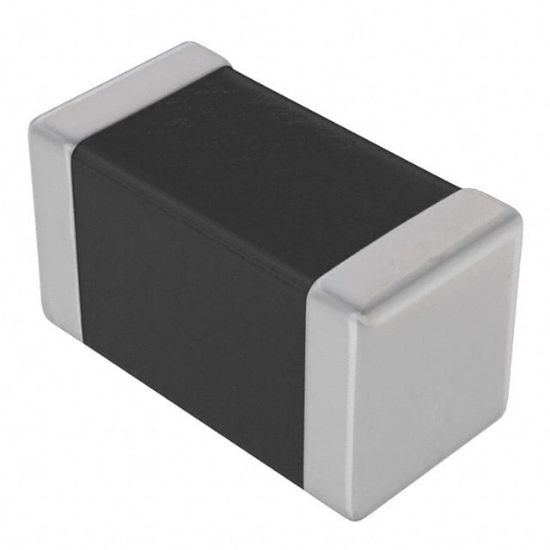

VC060314A300DP

VARISTOR 18.5V 30A 0603

1 review(s) | Add your review

Availability: In stock

Manufacturer: KYOCERA AVX

SKU: VC060314A300DP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

VC060314A300DP Description

Kyocera AVX TransGuard? VA & VC Voltage Suppressors

Kyocera AVX TransGuard? VA and VC Multilayer Ceramic Transient Voltage Suppressors (TVS) deliver state-of-the-art bidirectional overvoltage protection from voltage transients caused by electrostatic discharge (ESD), lightning, nuclear electromagnetic pulse (NEMP), and inductive switches. These suppressors are developed using a high-energy multilayer construction, thin dielectric materials, and patented processes for precise ceramic grain growth. Both series provide superior energy dissipation with transient clamping characteristics up to 1.2kA peak current. Other features are 0201 to 3220 case sizes with axial or SMD/SMT termination, 3.3VDC to 385VDC working voltage range, and?10mJ to 15J surge energy range. Applications for Kyocera AVX TransGuard VA and VC suppressors include microcontrollers, relays,?I/O ports, portable devices, industrial controllers, automation, smart grids, base stations, and much more.

Operating Temperature	-55°C ~ 125°C (TA)
Maximum DC Volts	14 V
Varistor Voltage (Max)	20.72 V
Energy	0.10J
Mounting Type	Surface Mount, MLCV
Capacitance @ Frequency	350 pF @ 1 kHz
Maximum AC Volts	10 V
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Surge	30 A
Features	-
Varistor Voltage (Typ)	18.5 V
RoHS	RoHS
Varistor Voltage (Min)	16.28 V
