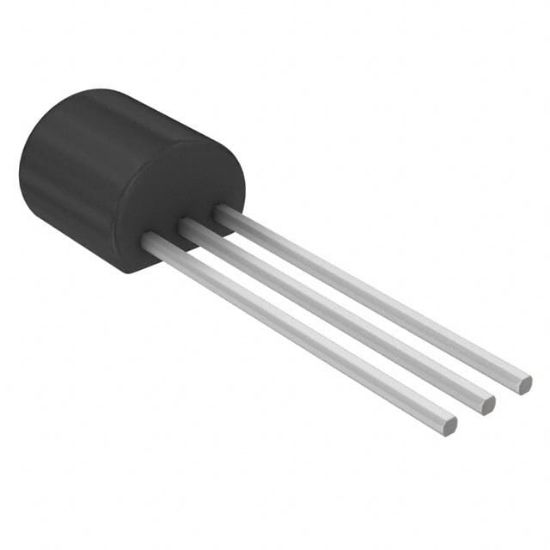

2N7000G

MOSFET N-CH 60V 200MA TO92-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: 2N7000G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N7000G Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	200mA (Ta)
Rds On (Max) @ Id, Vgs	5Ohm @ 500mA, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Bulk
Power Dissipation (Max)	350mW (Tc)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Supplier Device Package	TO-92 (TO-226)
Input Capacitance (Ciss) (Max) @ Vds	60 pF @ 25 V
RoHS	RoHS
