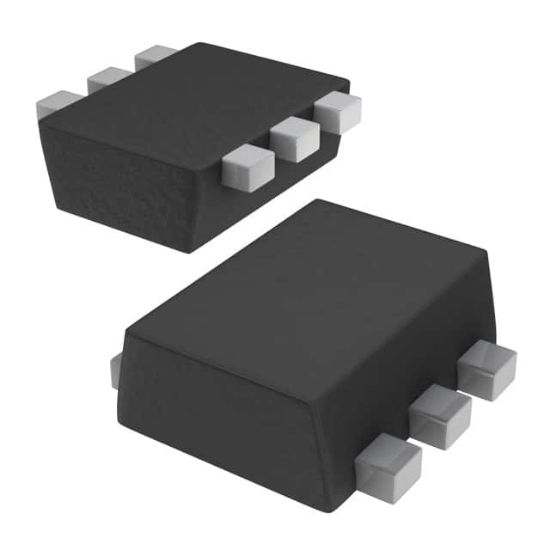

2N7002PV,115

MOSFET 2N-CH 60V 0.35A SOT-666

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: 2N7002PV,115

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2N7002PV,115 Description

Operating Temperature	150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	SOT-666
Current - Continuous Drain (Id) @ 25°C	350mA
Rds On (Max) @ Id, Vgs	1.6Ohm @ 500mA, 10V
FET Type	2 N-Channel (Dual)
Power - Max	330mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	60V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 10V
RoHS	RoHS
