2SB815-6-TB-E

TRANS PNP 15V 700MA 3CP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: 2SB815-6-TB-E

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2SB815-6-TB-E Description

marking code	Part No.	Manufacturer	Package	Pin	Memo

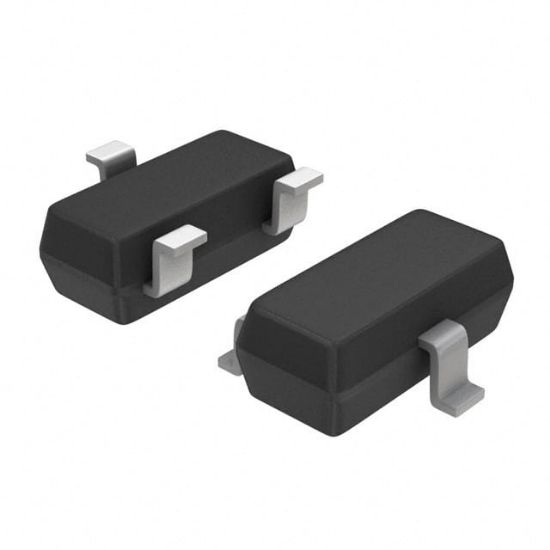

B.6	2SB815-6-TB-E		SOT-23	0	Bip Transistor -15V -0.7A VCE(sat);-35mV max. PNP Single

Operating Temperature	125°C (TJ)
Vce Saturation (Max) @ Ib, Ic	80mV @ 10mA, 100mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	700 mA
Supplier Device Package	3-CP
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	15 V
Power - Max	200 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 50mA, 2V
Frequency - Transition	250MHz
RoHS	RoHS
Transistor Type	PNP
