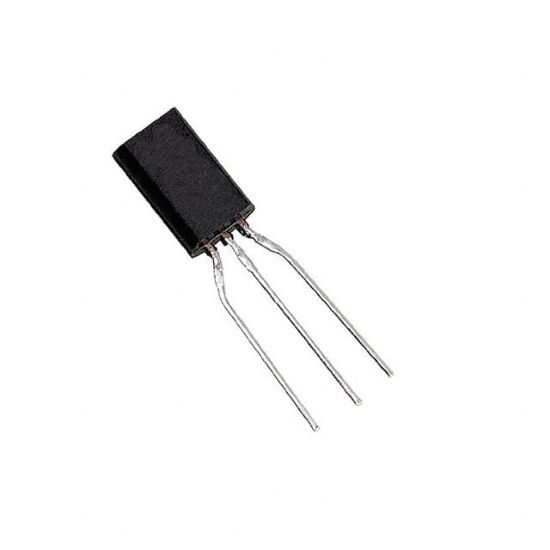

2SC13840S

TRANS NPN 50V 1A TO-92L

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: 2SC13840S

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2SC13840S Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	400mV @ 50mA, 500mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	1 A
Supplier Device Package	TO-92L-A1
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	1 W
Package	Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	170 @ 500mA, 10V
Frequency - Transition	200MHz
RoHS	RoHS
Transistor Type	NPN
