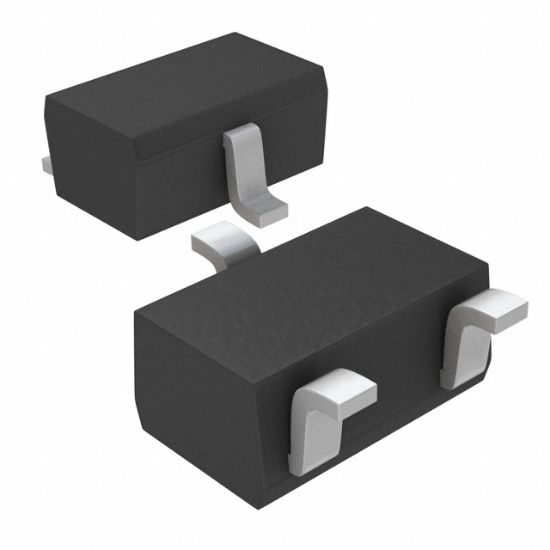

2SC4102T106R

TRANS NPN 120V 0.05A SOT-323

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: 2SC4102T106R

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2SC4102T106R Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TR	2SC4102T106R		SOT-323	0	High-voltage Amplifier NPN Transistor(120V, 50mA)
TS	2SC4102T106R		SOT-323	0	High-voltage Amplifier NPN Transistor(120V, 50mA)

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 1mA, 10mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	50 mA
Supplier Device Package	UMT3
Current - Collector Cutoff (Max)	500nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	120 V
Power - Max	200 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	180 @ 2mA, 6V
Frequency - Transition	140MHz
RoHS	RoHS
Transistor Type	NPN
