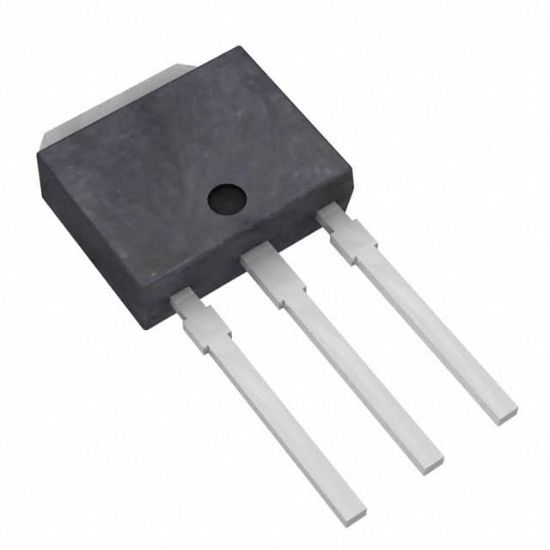

2SD1815S-E

TRANS NPN 100V 3A TP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: 2SD1815S-E

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

2SD1815S-E Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D1815	2SD1815S-E		DPAK	0	NPN High Current Bipolar Switching Transistor

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	400mV @ 150mA, 1.5A
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	3 A
Supplier Device Package	TP
Current - Collector Cutoff (Max)	1μA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	100 V
Power - Max	1 W
Package	Bulk,Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 500mA, 5V
Frequency - Transition	180MHz
RoHS	RoHS
Transistor Type	NPN
