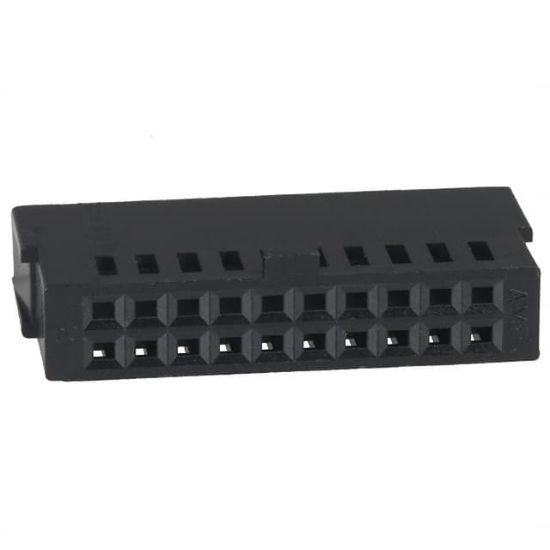

487223-5

CONN FFC RCPT HSG 20POS 2.54MM

1 review(s) | Add your review

Availability: In stock

Manufacturer: TE Connectivity AMP Connectors

SKU: 487223-5

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

487223-5 Description

Operating Temperature	-65°C ~ 105°C
Pitch	0.100\" (2.54mm)
Voltage Rating	300 V
Number of Rows	2
Material Flammability Rating	UL94 V-0
Package	Bulk
Housing Material	Thermoplastic
Flat Flex Type	FFC, Discrete Wire
Connector Type	Housing for Female Contacts
FFC, FCB Thickness	0.05-0.13mm
Features	-
Number of Positions	20
RoHS	RoHS
Locking Feature	Locking Ramp
