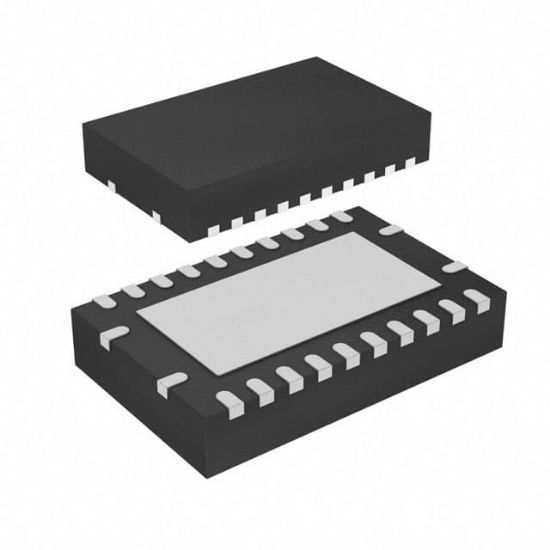

74LVC8T245RHLRG4

IC TRANSLATION TXRX 5.5V 24VQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: 74LVC8T245RHLRG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

74LVC8T245RHLRG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
NH245	74LVC8T245RHLRG4	TI	24	0	8-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and Three-State Outputs

Output Type	3-State
Operating Temperature	-40°C ~ 85°C (TA)
Current - Output High, Low	32mA, 32mA
RoHS	RoHS
Logic Type	Translation Transceiver
Voltage - Supply	1.65V ~ 5.5V
Number of Elements	2
Supplier Device Package	24-VQFN (5.5x3.5)
Package	Tape & Reel (TR)
Input Type	-
Number of Bits per Element	8
Mounting Type	Surface Mount

Service Assurance

The transaction is just the beginning, ONEPCBA provides a closed-loop service that guarantees quality from pre-sales to after-sales. As a value-added service provider, we provide quality assurance, including a longer after-sales guarantee time than the original factory.

We have established a clean, constant temperature warehouse, and constantly monitor the temperature and humidity of the warehouse. For electrostatic sensitive devices (MOS, transistors, CMOS devices, etc.), use electrostatic shielding measures; for magnetic field sensitive devices, also use corresponding magnetic field isolation measures.

In addition to ensuring the quality of components from the source, we have also established a strict QC warehousing process. We have established a database of components, including labels, chip appearances, chip silkscreens, and markings of wafers inside some chips. Compare the differences from various dimensions, and strictly confirm with the original factory. At the same time, we will also conduct other test requirements put forward by customers such as solderability, X-ray perspective inspection, ultrasonic scanning, slicing, uncapping, ambient temperature test, etc.

We establish a continuous cooperative relationship with original manufacturers, agents, and authorized catalogs to control the quality of materials from the source. Therefore, the components we sell are all traceable. Whether it is a process change or a version upgrade, we can be notified at the first time and inform customers of possible changes in advance to deal with various possible problems.
