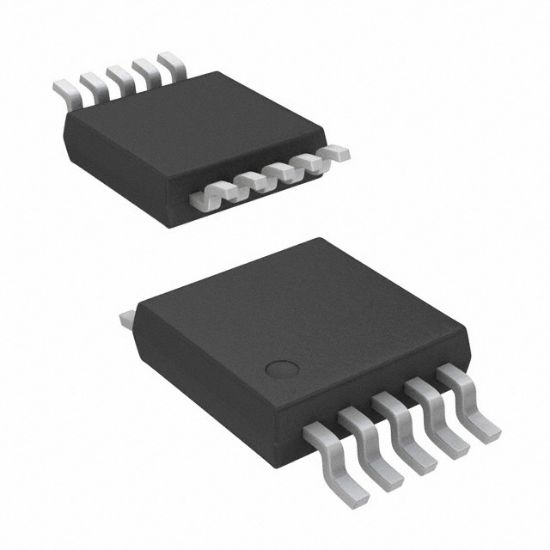

AD5324ARM

IC DAC 12BIT V-OUT 10MSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: AD5324ARM

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AD5324ARM Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
DDA	AD5324ARM		MSOP-10	0	2.5 V to 5.5 V, 500 uA Quad Voltage Output 12-Bit DAC

Operating Temperature	-40°C ~ 105°C
Data Interface	SPI, DSP
Differential Output	No
INL/DNL (LSB)	±2, ±0.2
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	10-MSOP
Number of Bits	12
Package	Tube,Tube
Architecture	String DAC
Number of D/A Converters	4
Voltage - Supply, Analog	2.5V ~ 5.5V
Settling Time	10μs
RoHS	RoHS
Voltage - Supply, Digital	2.5V ~ 5.5V
Output Type	Voltage - Buffered
