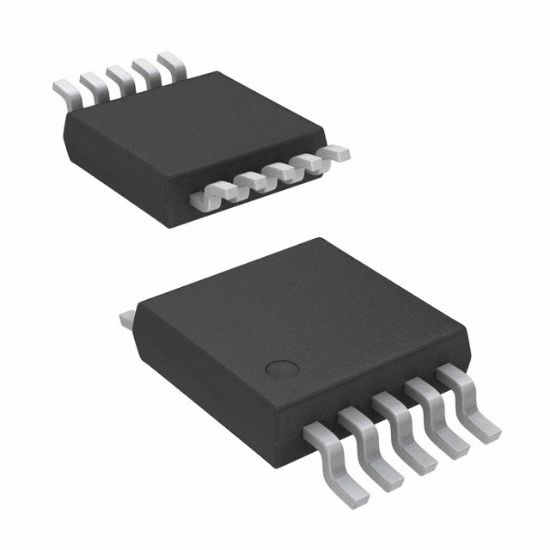

AD5432YRM

IC DAC 10BIT A-OUT 10MSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: AD5432YRM

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AD5432YRM Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D02	AD5432YRM	ADI	MSOP-10	10	High Bandwidth CMOS 10-Bit Serial Interface Multiplying D/A Converter
D1R	AD5432YRM	ADI	MSOP-10	10	High Bandwidth CMOS 10-Bit Serial Interface Multiplying D/A Converter

Operating Temperature	-40°C ~ 125°C
Data Interface	SPI, DSP
Differential Output	Yes
INL/DNL (LSB)	±0.5 (Max), ±1 (Max)
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	10-MSOP
Number of Bits	10
Package	Tube,Tube
Architecture	R-2R
Number of D/A Converters	1
Voltage - Supply, Analog	2.5V ~ 5.5V
Settling Time	160ns
RoHS	RoHS
Voltage - Supply, Digital	2.5V ~ 5.5V
Output Type	Current - Unbuffered
