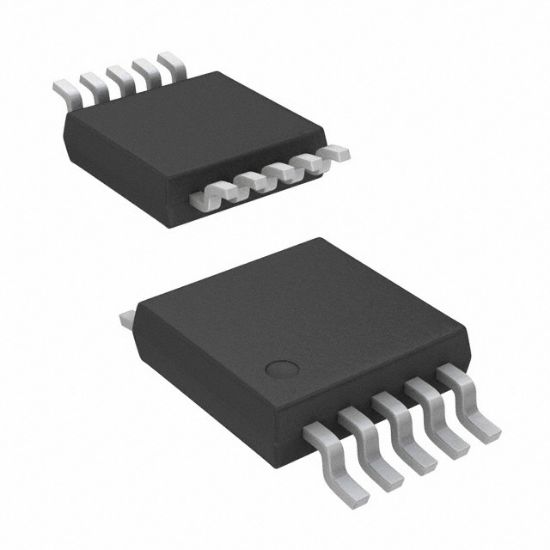

AD7989-1BRMZ

IC ADC 18BIT SAR 10MSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: AD7989-1BRMZ

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AD7989-1BRMZ Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
C76	AD7989-1BRMZ		MSOP-10	0	18-Bit, 100 kSPS PulSAR ADC

Operating Temperature	-40°C ~ 85°C
Data Interface	SPI, DSP
Number of A/D Converters	1
Reference Type	External
Mounting Type	Surface Mount
Supplier Device Package	10-MSOP
Number of Bits	18
Number of Inputs	1
Package	Tube
Configuration	S/H-ADC
Architecture	SAR
Input Type	Differential
Ratio - S/H:ADC	1:1
Voltage - Supply, Analog	2.375V ~ 2.625V
Features	-
Sampling Rate (Per Second)	100k
RoHS	RoHS
Voltage - Supply, Digital	2.375V ~ 2.625V
