ADC081S051CISD/NOPB

IC ADC 8BIT SAR 6WSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: ADC081S051CISD/NOPB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ADC081S051CISD/NOPB Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
X6C	ADC081S051CISD/NOPB	TI	6	0	Single Channel, 200 to 500 ksps, 8-Bit A/D Converter

Operating Temperature	-40°C ~ 85°C
Data Interface	SPI, DSP
Number of A/D Converters	1
Reference Type	Supply
Mounting Type	Surface Mount

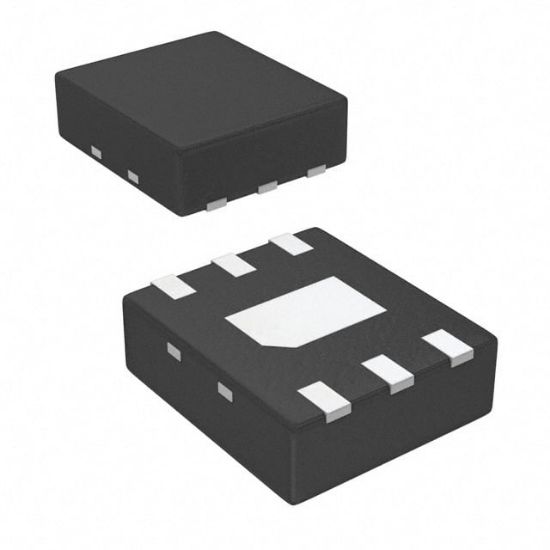

Supplier Device Package	6-WSON (2.2x2.5)
Number of Bits	8
Number of Inputs	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Configuration	S/H-ADC
Architecture	SAR
Input Type	Single Ended
Ratio - S/H:ADC	1:1
Voltage - Supply, Analog	2.7V ~ 5.25V
Features	-
Sampling Rate (Per Second)	500k
RoHS	RoHS
Voltage - Supply, Digital	2.7V ~ 5.25V
