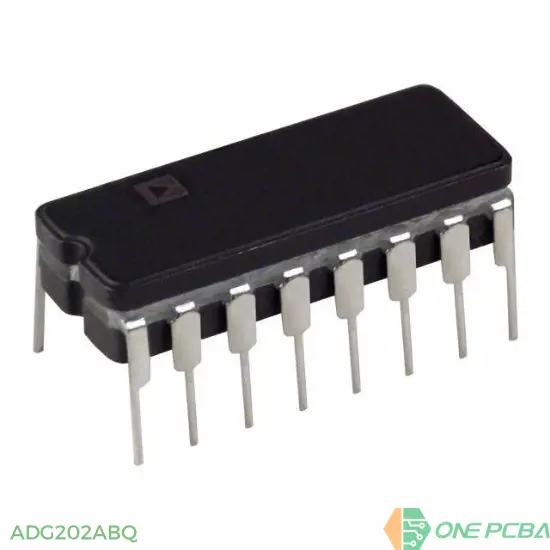

ADG202ABQ

IC SWITCH QUAD SPST 16CDIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: ADG202ABQ

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ADG202ABQ Description

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	5pF
On-State Resistance (Max)	90Ohm
Mounting Type	Through Hole
Supplier Device Package	16-CERDIP
Switch Circuit	SPST - NO
Voltage - Supply, Dual (V±)	±10V ~ 15V
Number of Circuits	4
Package	Tube,Tube
Charge Injection	20pC
Switch Time (Ton, Toff) (Max)	300ns, 250ns
Voltage - Supply, Single (V+)	10V ~ 15V
Crosstalk	-80dB @ 100kHz
Multiplexer/Demultiplexer Circuit	1:1
Channel-to-Channel Matching (ΔRon)	4.5Ohm
-3db Bandwidth	-
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	2nA
