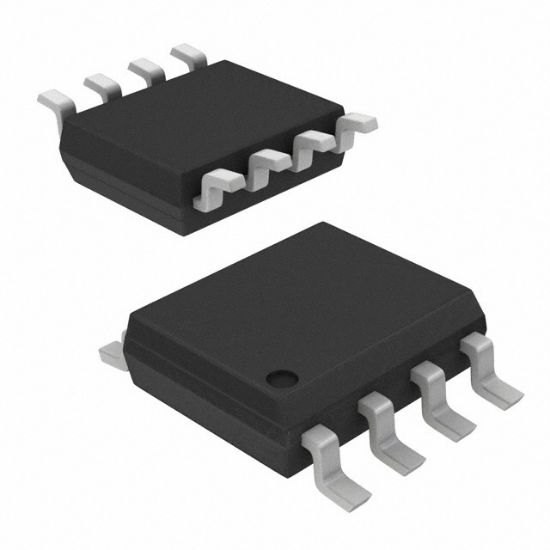

AO4415

MOSFET P-CH 30V 8A 8SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AO4415

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AO4415 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
4415	AO4415	Aosmd	SOIC-8	8	30V P沟道MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Rds On (Max) @ Id, Vgs	26mOhm @ 8A, 20V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	6V, 20V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	3W (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±25V
Vgs(th) (Max) @ Id	3.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V
Supplier Device Package	8-SOIC
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 15 V
RoHS	RoHS
