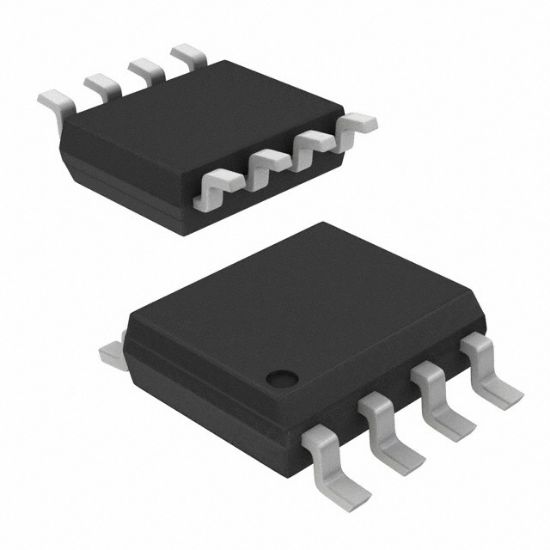

AO4822L_101

MOSFET 2N-CH 30V 8A

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AO4822L_101

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AO4822L_101 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Current - Continuous Drain (Id) @ 25°C	8A
Rds On (Max) @ Id, Vgs	19mOhm @ 8A, 10V
FET Type	2 N-Channel (Dual)
Power - Max	2W
Package	Bulk
Drain to Source Voltage (Vdss)	30V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	888pF @ 15V
RoHS	RoHS
