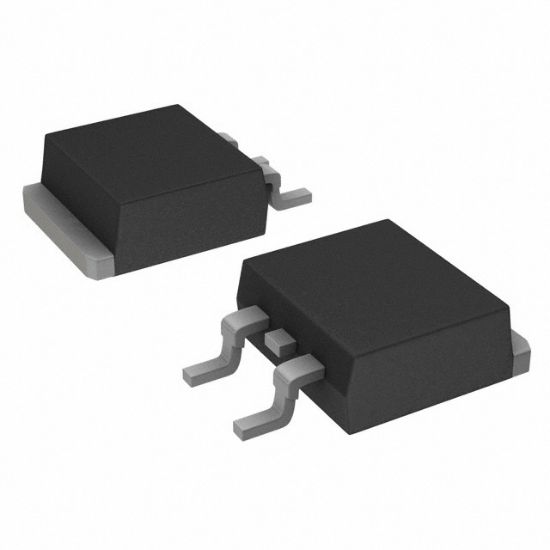

AOB11C60

MOSFET N-CH 600V 11A TO263

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOB11C60

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOB11C60 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
B11C60	AOB11C60		TO-263	0	600V,11A N-Channel MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Rds On (Max) @ Id, Vgs	440mOhm @ 5.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	278W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	42 nC @ 10 V
Supplier Device Package	TO-263 (D2Pak)
Input Capacitance (Ciss) (Max) @ Vds	2000 pF @ 100 V
RoHS	RoHS
