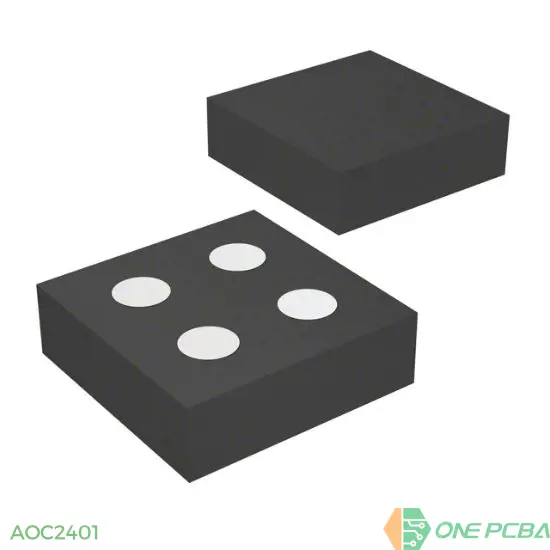

AOC2401

MOSFET P-CH 30V 3A 4ALPHADFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOC2401

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOC2401 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Pxx	AOC2401	Aosmd	MCSP 1.57x1.57_4	4	30V P沟道MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Rds On (Max) @ Id, Vgs	41mOhm @ 1.5A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	550mW (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	1.3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V
Supplier Device Package	4-AlphaDFN (1.57x1.57)
Input Capacitance (Ciss) (Max) @ Vds	1327 pF @ 15 V
RoHS	RoHS
