AOD200

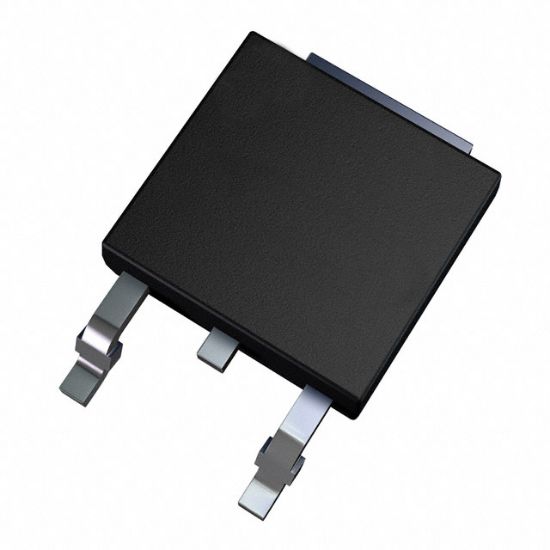

MOSFET N-CH 30V 14A/36A TO252

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOD200

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOD200 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D200	AOD200		TO-252	0	30V N-Channel MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 36A (Tc)
Rds On (Max) @ Id, Vgs	7.8mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	2.5W (Ta), 50W (Tc)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 10 V
Supplier Device Package	TO-252 (DPAK)
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 15 V
RoHS	RoHS
