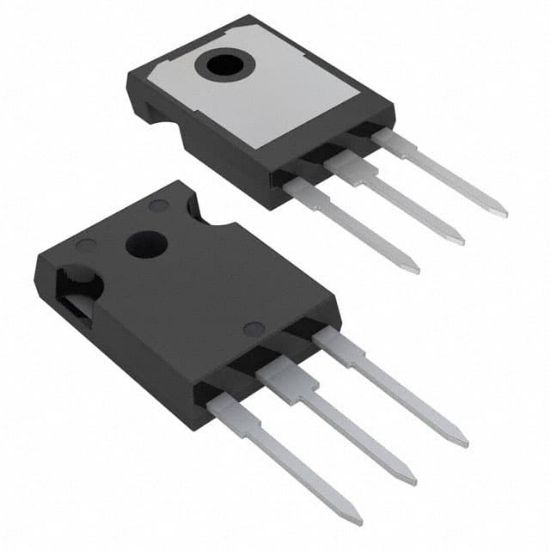

AOK20N60L

MOSFET N-CH 600V 20A TO247

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOK20N60L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOK20N60L Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	370mOhm @ 10A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	417W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	74 nC @ 10 V
Supplier Device Package	TO-247
Input Capacitance (Ciss) (Max) @ Vds	3680 pF @ 25 V
RoHS	RoHS
