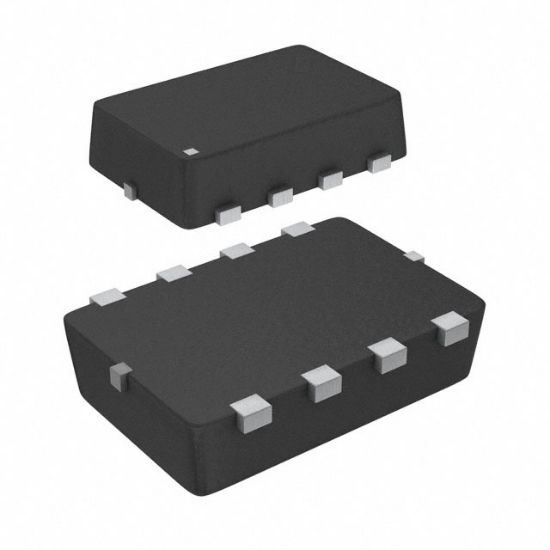

AON4807_101

MOSFET P-CH DUAL DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AON4807_101

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AON4807_101 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3x2)
Current - Continuous Drain (Id) @ 25°C	4A
Rds On (Max) @ Id, Vgs	68mOhm @ 4A, 10V
FET Type	2 P-Channel (Dual)
Power - Max	1.9W
Package	Tape & Reel (TR)
Drain to Source Voltage (Vdss)	30V
Vgs(th) (Max) @ Id	2.3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	290pF @ 15V
RoHS	RoHS
