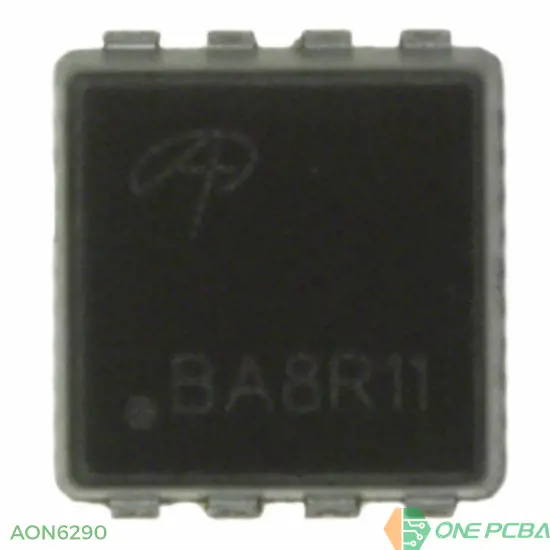

AON6290

MOSFET N CH 100V 28A DFN5X6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AON6290

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AON6290 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
6290	AON6290	Aosmd	DFN5X6-8	8	100V N沟道MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	28A (Ta), 85A (Tc)
Rds On (Max) @ Id, Vgs	4.6mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	7.3W (Ta), 208W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3.4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	90 nC @ 10 V
Supplier Device Package	8-DFN (5x6)
Input Capacitance (Ciss) (Max) @ Vds	4600 pF @ 50 V
RoHS	RoHS
