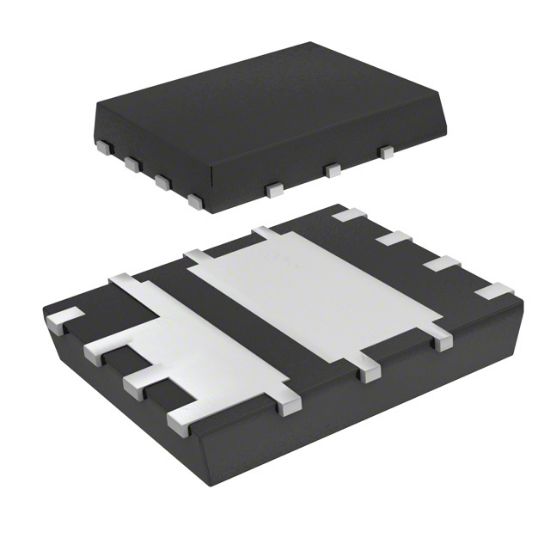

AON6928

MOSFET 2N-CH 30V 17A/30A 8DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AON6928

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AON6928 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
6928	AON6928	Aosmd	DFN5X6-8	8	30V双非对称N沟道AlphaMOS

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6)
Current - Continuous Drain (Id) @ 25°C	17A, 30A
Rds On (Max) @ Id, Vgs	8.2mOhm @ 20A, 10V
FET Type	2 N-Channel (Half Bridge)
Power - Max	3.6W, 4.3W
Package	Tape & Reel (TR)
Drain to Source Voltage (Vdss)	30V
Vgs(th) (Max) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1150pF @ 15V
RoHS	RoHS
