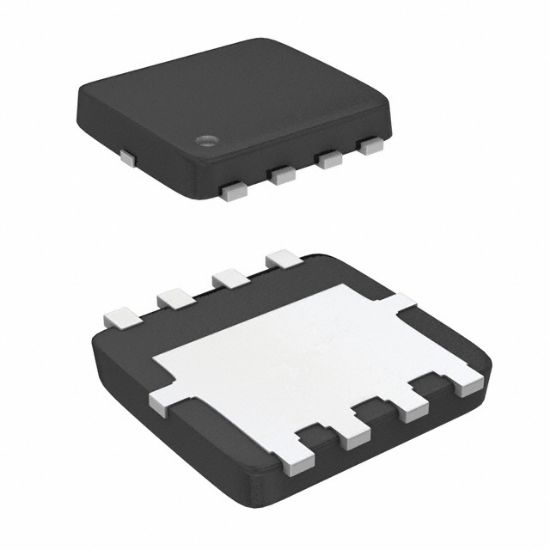

AON7611

MOSFET N/P-CH 30V 9A/18.5A 8DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AON7611

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AON7611 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
7611	AON7611	Aosmd	DFN3x3EP-8	8	30V互补MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3x3)
Current - Continuous Drain (Id) @ 25°C	9A, 18.5A
Rds On (Max) @ Id, Vgs	50mOhm @ 4A, 10V
FET Type	N and P-Channel, Common Drain
Power - Max	1.5W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	30V
Vgs(th) (Max) @ Id	2.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	170pF @ 15V
RoHS	RoHS
