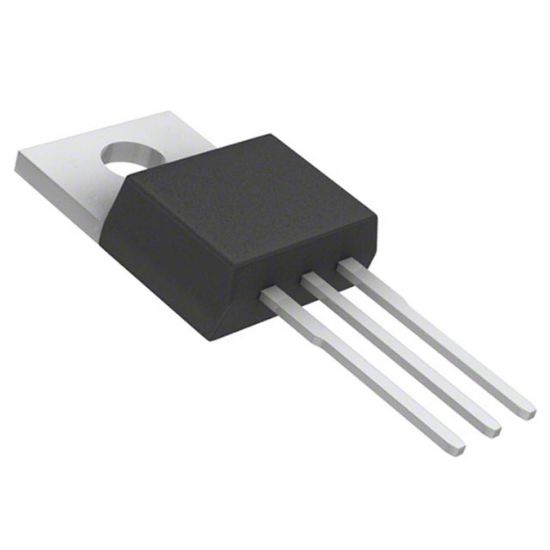

AOT1100L

MOSFET N-CH 100V 8A/130A TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOT1100L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOT1100L Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
T1100	AOT1100L		TO220	0	100V N-Channel Rugged Planar MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	8A (Ta), 130A (Tc)
Rds On (Max) @ Id, Vgs	12mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	2.1W (Ta), 500W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3.8V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	100 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	4833 pF @ 25 V
RoHS	RoHS
