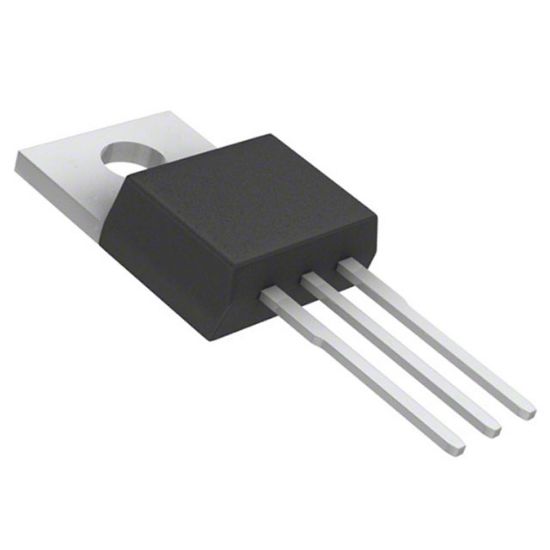

AOT16N50

MOSFET N-CH 500V 16A TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOT16N50

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOT16N50 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
T16N50	AOT16N50		TO220	0	500V, 16A N-Channel MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Rds On (Max) @ Id, Vgs	370mOhm @ 8A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	278W (Tc)
Drain to Source Voltage (Vdss)	500 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	2297 pF @ 25 V
RoHS	RoHS
