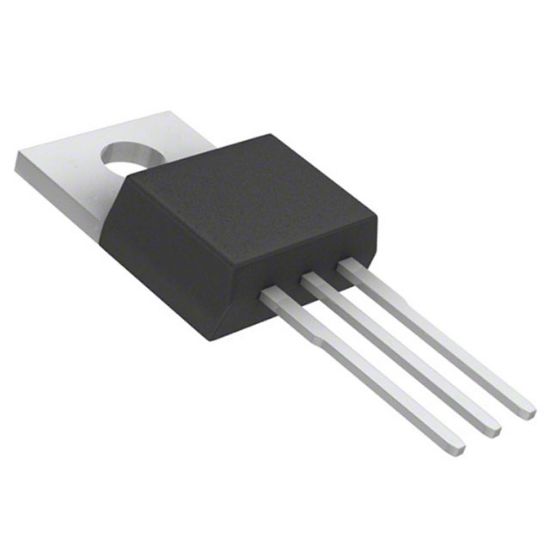

AOT7N60

MOSFET N-CH 600V 7A TO220

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOT7N60

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOT7N60 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
T7N60	AOT7N60		TO220	0	600V,7A N-Channel MOSFET

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Rds On (Max) @ Id, Vgs	1.2Ohm @ 3.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	192W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±30V
Vgs(th) (Max) @ Id	4.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	28 nC @ 10 V
Supplier Device Package	TO-220
Input Capacitance (Ciss) (Max) @ Vds	1035 pF @ 25 V
RoHS	RoHS
