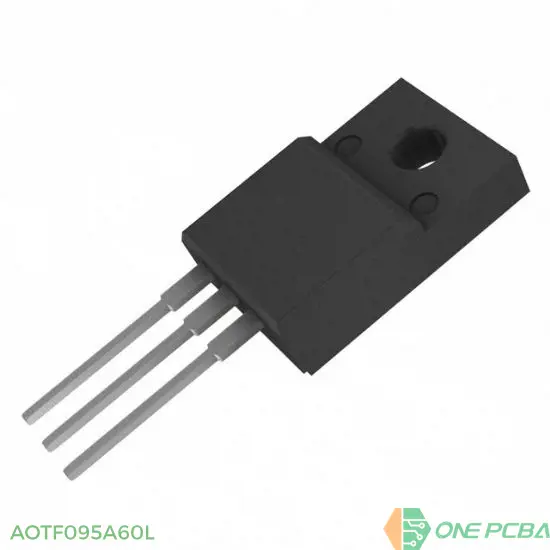

AOTF095A60L

MOSFET N-CH 600V 38A TO220F

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOTF095A60L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOTF095A60L Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	38A (Tj)
Rds On (Max) @ Id, Vgs	95mOhm @ 19A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	41W (Tc)
Drain to Source Voltage (Vdss)	600 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	78 nC @ 10 V
Supplier Device Package	TO-220F
Input Capacitance (Ciss) (Max) @ Vds	4010 pF @ 100 V
RoHS	RoHS
