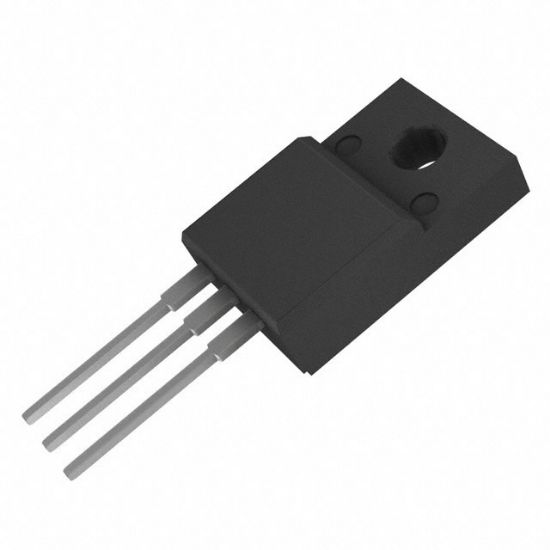

AOTF2606L

MOSFET N-CH 60V 13A/54A TO220-3F

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOTF2606L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOTF2606L Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TF2606	AOTF2606L		TO220F	0	60V N-Channel MOSFET

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	13A (Ta), 54A (Tc)
Rds On (Max) @ Id, Vgs	6.5mOhm @ 20A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube
Power Dissipation (Max)	2.1W (Ta), 36.5W (Tc)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3.5V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	75 nC @ 10 V
Supplier Device Package	TO-220F
Input Capacitance (Ciss) (Max) @ Vds	4050 pF @ 30 V
RoHS	RoHS
