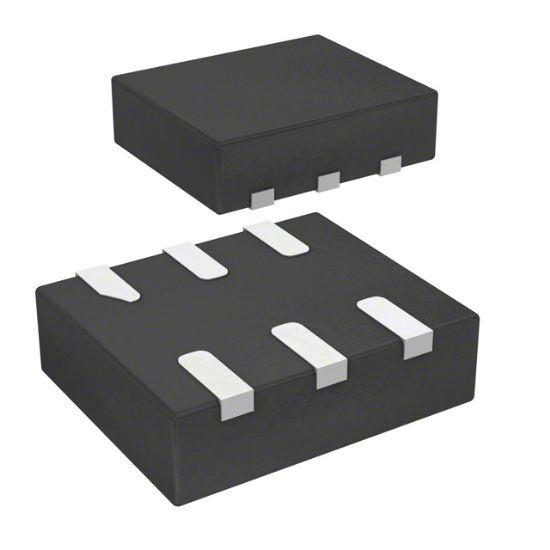

AOZ6134DI

IC USB 2.0 SWITCH 6DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Alpha & Omega Semiconductor Inc.

SKU: AOZ6134DI

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AOZ6134DI Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Ax	AOZ6134DI		DFN1.2x1.0-6L	0	High Performance, Low RON, 1 SPDT Analog Switch

Operating Temperature	-40°C ~ 85°C (TA)
Channel Capacitance (CS(off), CD(off))	7pF
On-State Resistance (Max)	1.2Ohm
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (1.2x1.1)
Switch Circuit	SPDT
Voltage - Supply, Dual (V±)	-
Number of Circuits	1
Package	Tape & Reel (TR)
Charge Injection	90pC
Switch Time (Ton, Toff) (Max)	55ns, 45ns
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Crosstalk	-60dB @ 1MHz
Multiplexer/Demultiplexer Circuit	-
Channel-to-Channel Matching (ΔRon)	30mOhm
-3db Bandwidth	180MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	30nA
