AT25080B-MAHL-T

IC EEPROM 8KBIT SPI 20MHZ 8UDFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: AT25080B-MAHL-T

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

AT25080B-MAHL-T Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
58B+HLx	AT25080B-MAHL-T		UDFN2x3-8	0	8Kb SPI-compatible Serial EEPROM

Voltage - Supply	1.8V ~ 5.5V
Memory Size	8Kb (1K x 8)
Mounting Type	Surface Mount
Technology	EEPROM
Write Cycle Time - Word, Page	5ms
Memory Format	EEPROM
Clock Frequency	20 MHz
Memory Type	Non-Volatile
Operating Temperature	-40°C ~ 85°C (TA)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?

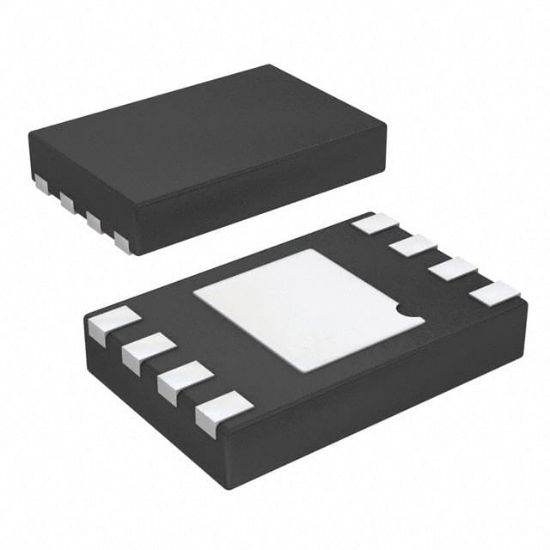

Supplier Device Package	8-UDFN (2x3)
RoHS	RoHS
Access Time	-
Memory Interface	SPI
