BAT46SFILM

DIODE ARRAY SCHOTTKY 100V SOT23

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: BAT46SFILM

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BAT46SFILM Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
B46	BAT46SFILM		SOT-23	3	Series dual small signal Schottky diodes

Current - Average Rectified (Io) (per Diode)	150mA (DC)
Mounting Type	Surface Mount

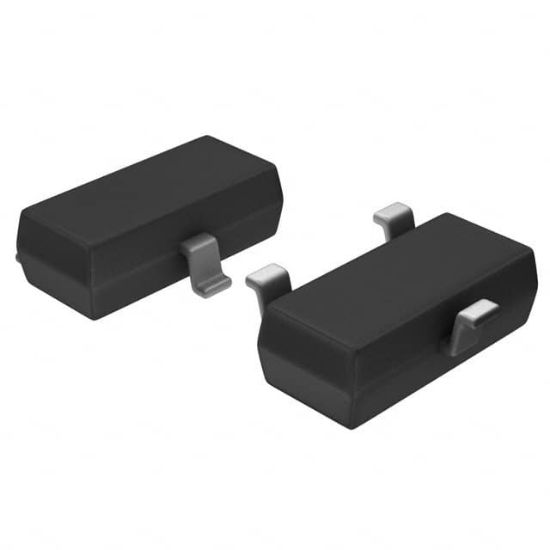

Supplier Device Package	SOT-23-3
Diode Type	Schottky
Operating Temperature - Junction	150°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	450 mV @ 10 mA
Current - Reverse Leakage @ Vr	5 μA @ 75 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	100 V
Diode Configuration	1 Pair Series Connection
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
