BAT54WFILM

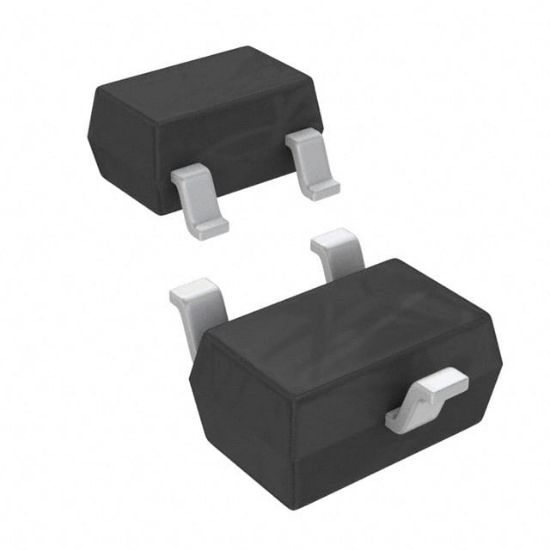

DIODE SCHOTTKY 40V 300MA SOT323

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: BAT54WFILM

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BAT54WFILM Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
D73	BAT54WFILM	ST	SOT-323	3	Small signal Schottky diode

Capacitance @ Vr, F	10pF @ 1V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	SOT-323
Diode Type	Schottky
Operating Temperature - Junction	-40°C ~ 150°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	900 mV @ 100 mA
Current - Reverse Leakage @ Vr	1 μA @ 30 V
Reverse Recovery Time (trr)	5 ns
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	300mA (DC)
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
