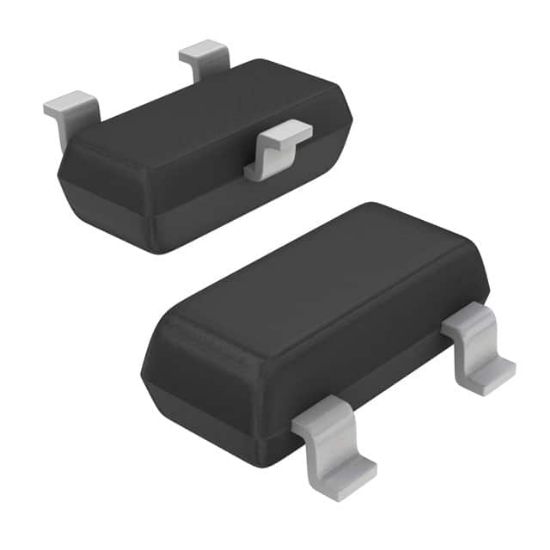

BAW56LT1G

DIODE ARRAY GP 70V 200MA SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BAW56LT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BAW56LT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
A1	BAW56LT1G	ON	SOT-23/SC-59	0	二极管Diodes 开关二极管Switching Diodes 双管共阳极1 PAir Common Anode

Current - Average Rectified (Io) (per Diode)	200mA (DC)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Diode Type	Standard
Operating Temperature - Junction	-55°C ~ 150°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 150 mA
Current - Reverse Leakage @ Vr	2.5 μA @ 70 V
Reverse Recovery Time (trr)	6 ns
Voltage - DC Reverse (Vr) (Max)	70 V
Diode Configuration	1 Pair Common Anode
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
