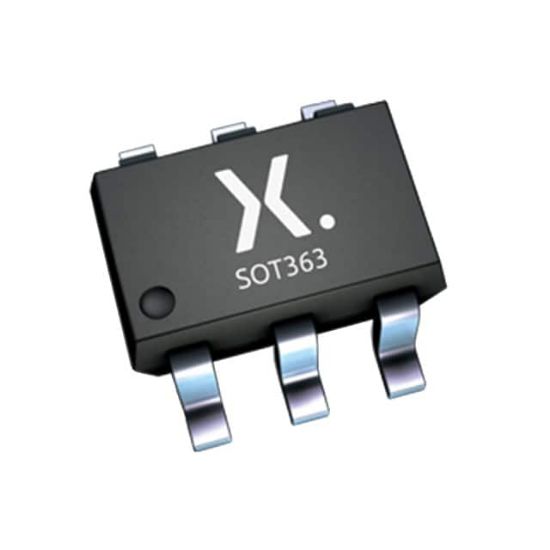

BAW56S,115

DIODE ARRAY GP 90V 250MA 6TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: BAW56S,115

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BAW56S,115 Description

Current - Average Rectified (Io) (per Diode)	250mA (DC)
Mounting Type	Surface Mount
Supplier Device Package	6-TSSOP
Diode Type	Standard
Operating Temperature - Junction	150°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	1.25 V @ 150 mA
Current - Reverse Leakage @ Vr	500 nA @ 80 V
Reverse Recovery Time (trr)	4 ns
Voltage - DC Reverse (Vr) (Max)	90 V
Diode Configuration	2 Pair Common Anode
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
