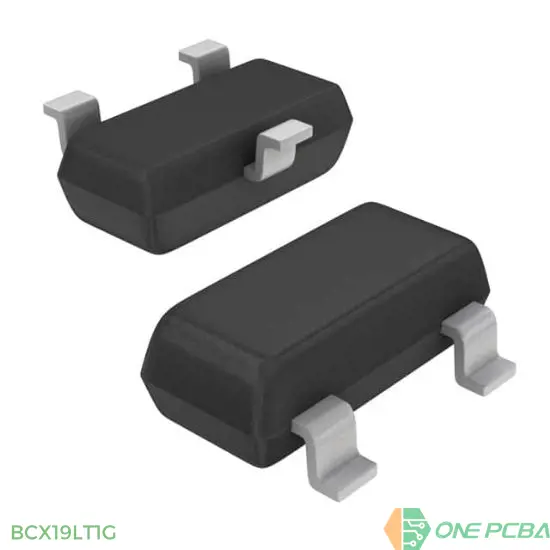

BCX19LT1G

TRANS NPN 45V 500MA SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: BCX19LT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BCX19LT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
U1	BCX19LT1G	ON	SOT?23	3	NPN Bipolar Transistor

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	620mV @ 50mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	500 mA

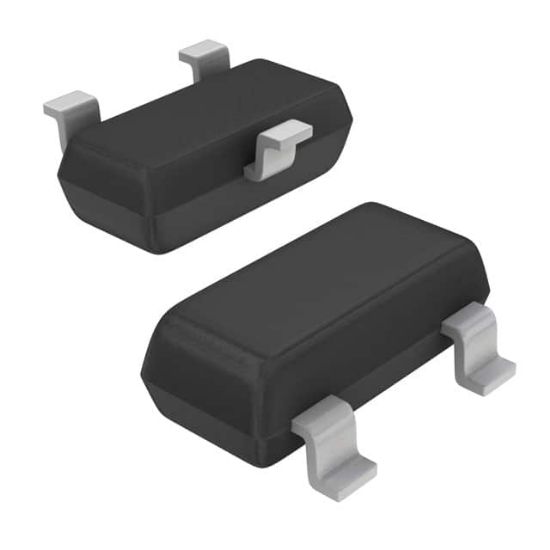

Supplier Device Package	SOT-23-3 (TO-236)
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	45 V
Power - Max	300 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 100mA, 1V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	NPN
