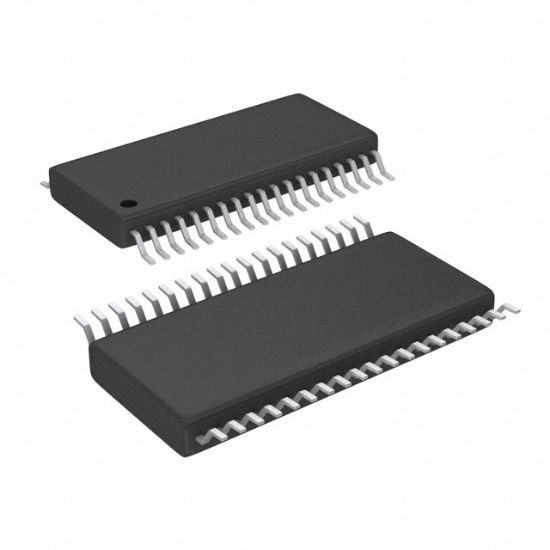

BQ20Z80DBT-V101

IC ADV GAS GAUGE LI-ION 38TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: BQ20Z80DBT-V101

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BQ20Z80DBT-V101 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
20Z80DBT	bq20z80DBT-V101		TSSOP-38	38	Impedance Track (TM) 1% accurate Gas Gauge for LiIon batteries SBS1.1 compliant

Operating Temperature	-40°C ~ 85°C (TA)
Battery Chemistry	Lithium Ion/Polymer
Fault Protection	Over Current, Over Temperature, Over/Under Voltage, Short Circuit
RoHS	RoHS
Function	Battery Monitor
Supplier Device Package	38-TSSOP
Package	Tube
Interface	SMBus
Mounting Type	Surface Mount
Number of Cells	-
