BQ4802YPW

IC RTC CLK/CALENDAR PAR 28-TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: BQ4802YPW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BQ4802YPW Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
4802YPW	BQ4802YPW	TI	28	0	Y2K-Compliant Parallel RTC with CPU Supervisor and External NVSRAM Control, 5V Vcc

Voltage - Supply	4.5V ~ 5.5V
Memory Size	-
Date Format	YY-MM-DD-dd
Mounting Type	Surface Mount

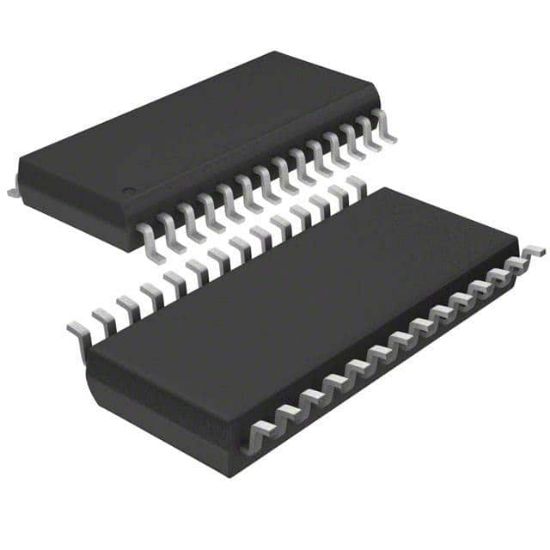

Supplier Device Package	28-TSSOP
Operating Temperature	0°C ~ 70°C
Package	Tube
Current - Timekeeping (Max)	1.5mA (Typ) @ 4.5 V ~ 5.5 V
Interface	Parallel
Time Format	HH:MM:SS (12/24 hr)
Type	Clock/Calendar
Voltage - Supply, Battery	2.4V ~ 4V
Features	Alarm, Daylight Savings, Leap Year, Supervisor, Watchdog Timer
RoHS	RoHS
