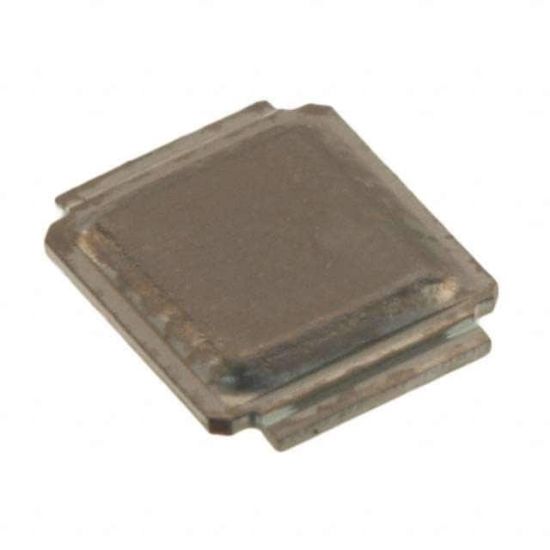

BSB008NE2LXXUMA1

MOSFET N-CH 25V 46A/180A 2WDSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Infineon Technologies

SKU: BSB008NE2LXXUMA1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

BSB008NE2LXXUMA1 Description

Operating Temperature	-40°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	46A (Ta), 180A (Tc)
Rds On (Max) @ Id, Vgs	0.8mOhm @ 30A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.8W (Ta), 89W (Tc)
Drain to Source Voltage (Vdss)	25 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	343 nC @ 10 V
Supplier Device Package	MG-WDSON-2, CanPAK M?
Input Capacitance (Ciss) (Max) @ Vds	16000 pF @ 12 V
RoHS	RoHS
